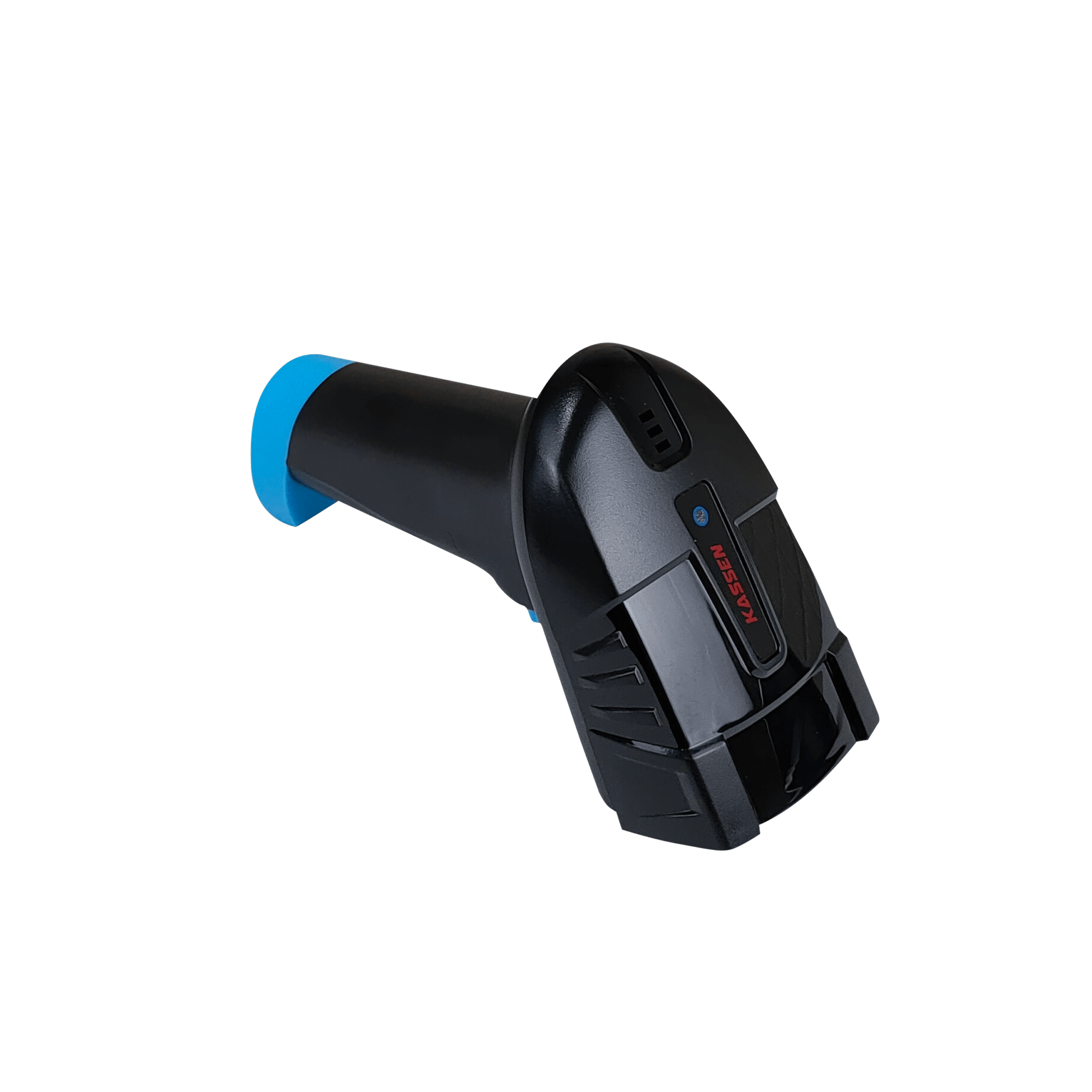

RF 2400

FEATURES

Factory direct sale, cheap price.
Can store 150,000
Barcode O Line
Supports 1D/2D Barcode on Paper/Screen
Built-In 2200 mAh Battery, Super long Standby Time
Base Support Data Transmission and Battery Charging
Support Dierent Language For 25 Countries.
433 Mhz Wireless Communication Distance Outdor 400m, Indoor 100m.
Super Network Mode : One to One ( One Scanner to One Receiver), More to One (Several Scanner to One Receiver).
Support to Put Prex or Sux Before or After Scanned Data, Support for Deleting or Adding Characters in the Middle of Barcode.
Application Fields : Supermarket, Retail, Warehouse, Logistic, Library, Medical Etc.
32 Bit CPU, Super Decoding Ability, Read Barcode as Small as 3 mill.

Specifications

Transmission mode	433Mhz Wireless
Distance	400m
Sensor	640*480 CMOS
Resolution	4mil
Battery	3.7V-2200mAh
Decoding speed	500scans/sec
Button life	8000,000 times
Storage	150,000 barcodes
CPU	ARM 32-bit Cortex
Interface	USB,USB-COM
Light aimer	617nm LED
Indication	Buzzer & LED
Illumination	6500K LEDs
Material	ABS+PC
250Lux Depth of Field	13mil-EAN13 50-250mm 4mil-code39 60-100mm 20mil-QR 40-300mm 10mil-PDF417 40-280mm
Decode Capability	1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, Codabar, ISBN, ISSN, GS1 DataBar(RSS14), etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode	Handheld,Continuous,Auto-Induction
Scanning angle	Angle of rotation360°,inclination± 65°,declination ± 60°
Working current	3.3Vx200mA
Working time	3 to 10 days
Anti inference	0-100000Lux Max
Certificate	CE,FCC,RoHS,IP54
Standby current	18uA-5mA
Charging power	5V-400mA
Printing Contract	≥25%
Drop test	2m
